RUMBER SQUEEZE CHUTES FEATURES & BENEFITS

RECOMMENDED BOARDS

9502

1 1/2″ x 5 1/2″



3.70 lbs/ft

Product Details

1 1/2″ x 5 1/2″ Tongue and Groove board with traction surface on one side and smooth surface on the other.  Can be used in conjunction with the 9102 board.

Requires 12″ cross-member spacing and two self-tapping screws per cross-member.

9102

1 1/2″ x 7″



4.70 lbs/ft

Product Details

1 1/2″ x 7″ Tongue and Groove board with traction surface on one side and smooth surface on the other.  Can be used in conjunction with the 9502 board.

Requires 12″ cross-member spacing and two self-tapping screws per cross-member.

9504

1 1/2″ X 5 1/2″



3.70 lbs/ft

Product Details

1 1/2″ x 5 1/2″ Plank board with traction surface on one side and smooth surface on the other.  Can be used in conjunction with the 9104 board.



Requires 12″ cross-member spacing and two self-tapping screws per cross-member.

9104

1 1/2″ x 7″



4.70 lbs/ft

Product Details

1 1/2″ x 7″ Plank board with traction surface on one side and smooth surface on the other.

Requires 12″ cross-member spacing and two self-tapping screws per cross-member.

9407

1 3/4″ x 8″



1/2″ Cleat



5.77 lbs/ft

Product Details

2″ x 8″ Plank board with 3/4″ cross-lug pattern will greatly increases the traction of your trailer flooring and safety of your animals while the rubber flooring will reduce stress and fatigue.



Requires 12″ cross-member spacing and two self-tapping screws per cross-member.





9408

2″ x 8″



3/″ Cross Lug



6.8 lbs/ft

Product Details

1 3/4 x 8″ Plank board with 1/2″ cleat running down the middle.  The cleat traction will greatly increases the traction of your trailer flooring and safety of your animals while the rubber flooring will reduce stress and fatigue.



Requires 12″ cross-member spacing and two self-tapping screws per cross-member.

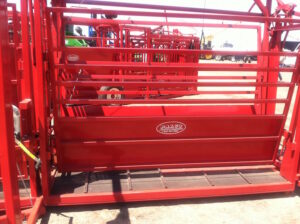

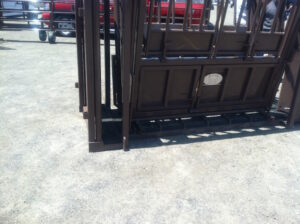

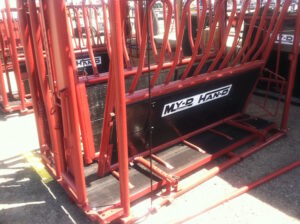

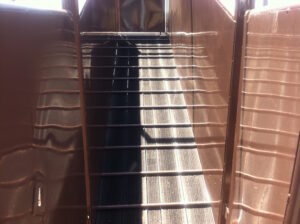

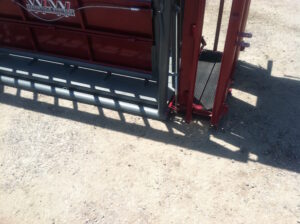

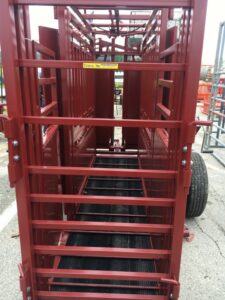

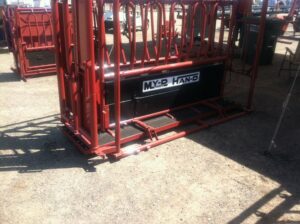

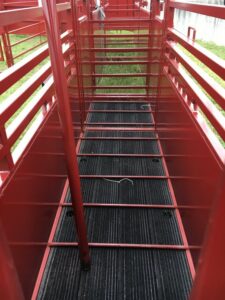

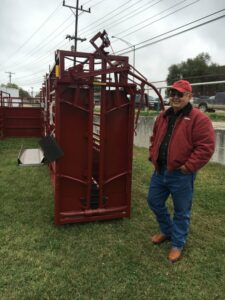

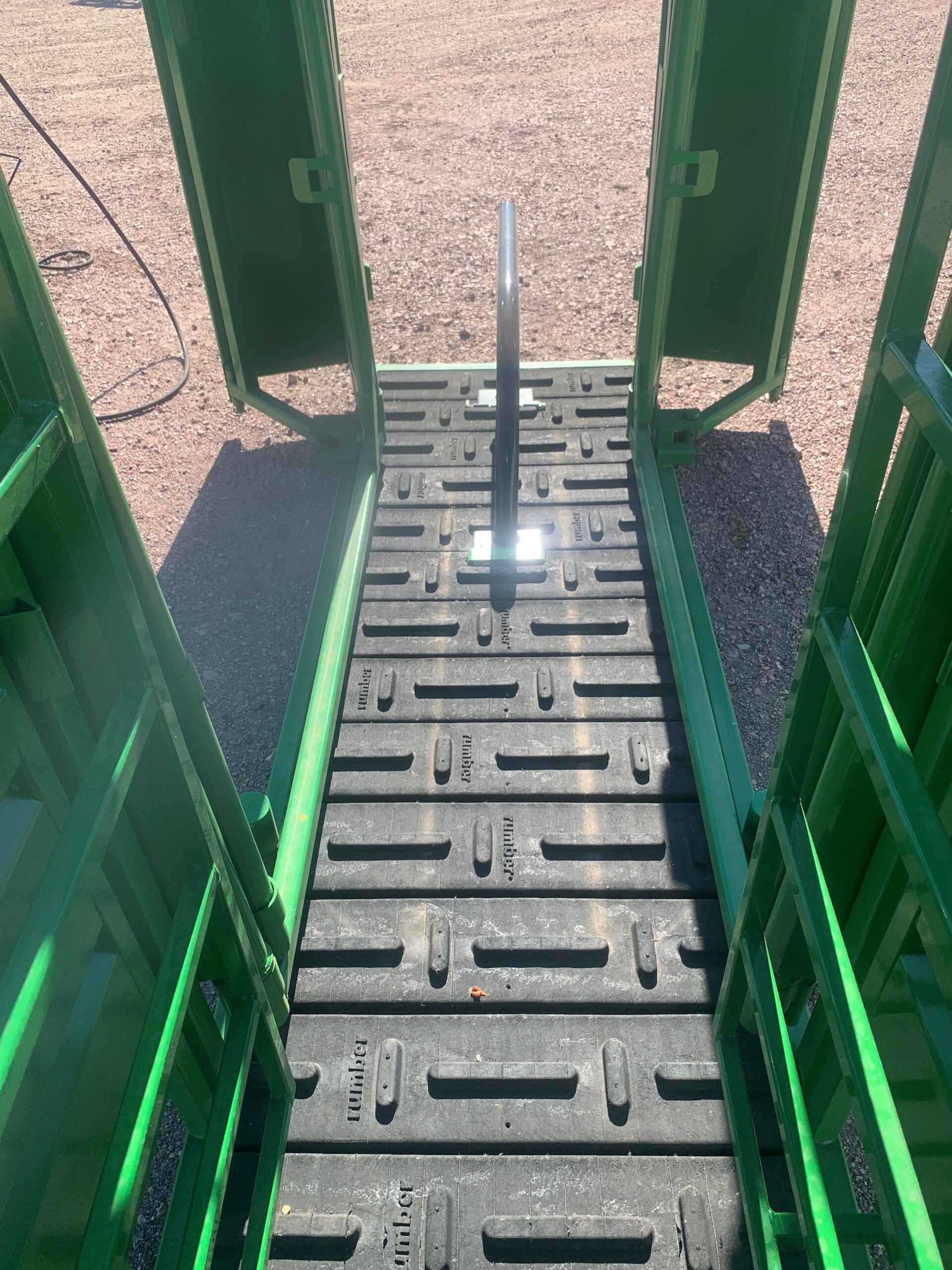

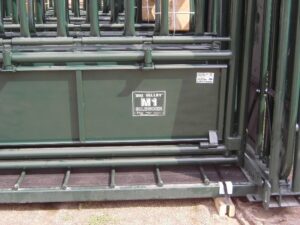

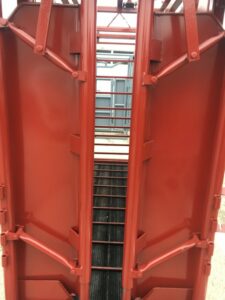

Rumber in the field

Below are only a few examples of Rumber used for Squezze Chutes.
